- Compact all-in-one automatic weather station
- Highly portable
- Unattended weather recording at remote and exposed sites
- Compatible with DeltaLINK-Cloud data sharing platform

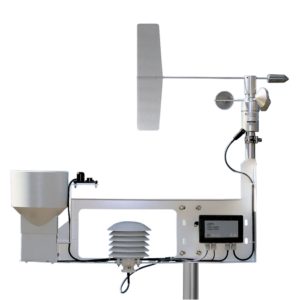

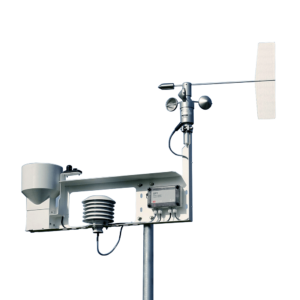

The WS-GP1 Automatic Weather Station includes high grade sensors to measure rain, solar radiation, wind speed, wind direction, relative humidity and air temperature. The system comes complete with the GP1 Data Logger and a 2m tripod mast.
DeltaLINK‐Cloud – online data viewing and sharing platform
Rapid installation
The WS-GP1 Automatic Weather Station is supplied pre-wired and pre-programmed and can be set up on-site in minutes. The system is delivered in two suitcase-style carry cases that can be used to store or transport the system. The cases are light enough for one person to carry.
Tough and dependable
Despite the low system cost, the sensors are dependable and suitable for use in demanding environments. The galvanised steel tripod and white painted stainless steel cross-arm ensure excellent physical strength. The system requires minimal maintenance.
The internal battery provides 6 month’s operation (typical).
Easy data collection
Recorded weather data can be collected directly with a notebook PC, or remotely by optional cellular modem. In addition to the standard logging options, the WS-GP1 can log and display wind rose, gusts, averages (including vector average) and maximum and minimum readings, with times of occurrence. The GP1 Data Logger can store >600,000 readings.
The WS-GP1 Automatic Weather Station is an excellent choice for research or agricultural and environmental applications where reliable and accurate weather data is required.
Specification
| Specification | Range / Note | |
| Wind speed D-034B-CA (combined wind sensor) | ||
| Range | 0.4 to 75 m.s-1 | (0-167 mph) |
| Accuracy | ± 0.1m.s-1 | Up to 10.1 m.s-1 |
| ± 1.1% of reading | Over 10.1 m.s-1 | |
| Starting threshold | 0.4 m.s-1 | -30° to +70°C (if icing minimal) |
| Wind direction D-034B-CA (combined wind sensor) | ||
| Accuracy | ±4 degrees 0.5° (resolution) | Mechanical: 0 to 360° Electrical: 0 to 356° |
| Starting threshold | 0.4 m.s-1 | -30° to +70°C (if icing minimal) |
| Rainfall RG2+WS-CA | ||
| Sensitivity | 0.2 mm/tip | 160 mm funnel diameter |
| Humidity RHT3nl-CA (combined air temp sensor) | ||
| Accuracy | ± 2% RH | 5 to 95% RH[1] |
| ± 2.5% RH | <5%, >95% RH | |
| Air temperature RHT3nl-CA (combined RH sensor) | ||
| Accuracy | ± 0.3°C | -20 to 70°C |
| Solar radiation D-PYRPA-CA | ||
| Accuracy | ± 5% | 0 to 1.1 kW.m-2 300 to 1100 nm |
| Cosine response | ± 1% at 45° ± 4% at 75° | At zenith angle |
| Data recording and power | ||
| Logging frequency | 1 s to 24 hr | Logging status indicated by flashing LED |
| Comms | To PC or laptop | RS232, USB[2] or modem |
| Battery life | 9 V alkaline | 190 days typical, reading every 5 minutes |
| Physical | ||
| Environmental | IP65 sealing | |
| Temperature | -20 to +60°C | If icing minimal |
| Cross-arm | White-painted stainless steel | Fits horizontal. or vertical pole (42-52 mm diameter.) |
| Weight | 14.3 kg | Complete with 2 m tripod and ground stakes |
[1] At 23°
[2] With USB to RS232 Adapter Cable type USB-RS232
Accessories
Hardware
Main components and software
Mountings and enclosures
Installation accessories
Cables and networks
Remote communications
Spares and consumables
Power options
Other
Product Resources
Data Sheets
- WS-GP1 Weather Station Data Sheet 2 MB
Covering the features and detailed specifications of this high-grade portable weather station
Filename: WS_GP1_Data_Sheet_version_4 - DeltaLINK-Cloud - online data viewing and sharing service 2 MB
Filename: DeltaLINK-Cloud_data_sheet_ver_3 - Environmental and Meteorological Sensor Specifications 5 MB
Filename: env-and-met-sensors-and-systems-specifications
Software
Manuals
- 3G Modem Gateway User Manual v1.2 2 MBDownloadFilename: 3G_Modem_Gateway_User_Manual_v1.2
- GPRS Modem Gateway User Manual v1.1 2 MBDownloadFilename: gprs_modem_gateway-user_manual_v1-1
- M2-TRPD Assembly Instructions 231 KBDownloadFilename: m2-trpd-assembly-instructions-v1-0
- WS-GP1 Weather Station Quick Start Guide V2.0 746 KB
Quick Start Guide for the pre-wired and pre-programmed WS-GP1 Weather Station v2.0. Contains: unpacking, location. assembly, orientation, programming, data collection and graphing, specifications and service.
DownloadFilename: WS-GP1_Quick_Start _Guide_v2.0
